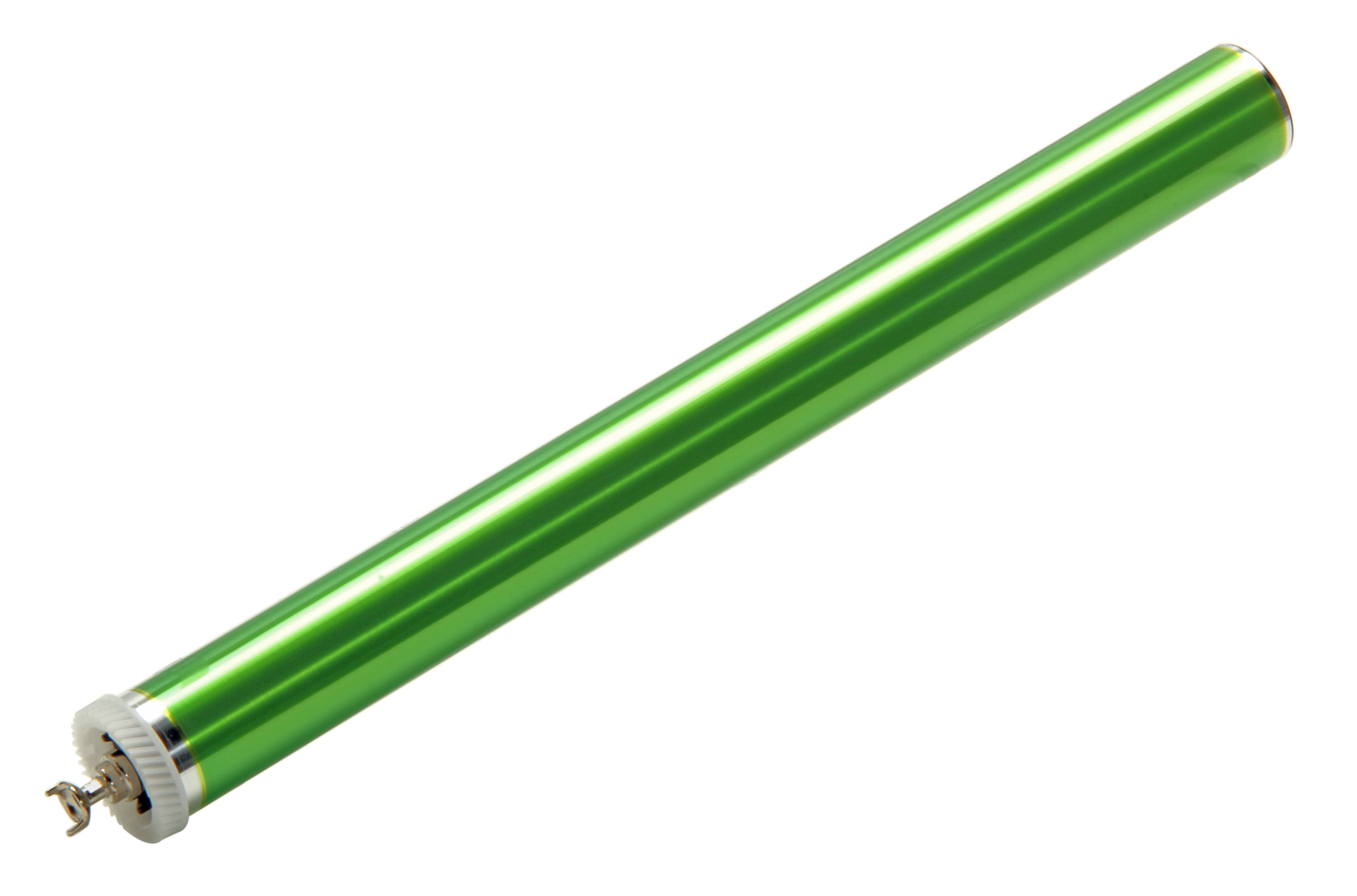

Odyssey Drum with SafeDrive Gears for use in HP M402
This Odyssey drum features patented SafeDrive gear technology, which features a lever mechanism in the HM402PDGRKIT-2 to engage the dongle on the PG2DRHM402-2 drum gear. The lever is actuated by the printer door and provides smooth removal and installation.
The drum and gear are pre-assembled and the HM402PDGRKIT-2 is required (sold separately).
During remanufacturing, the OEM bearing plate on the cartridge is removed with a pry tool to break two ultrasonic welds. During re-assembly, install the clear OPC washer and simply attach the replacement bearing plate with a bolt and nut (provided in the HM402PDGRKIT-2). The cartridge end plate is re-attached using the OEM screws. No further modification of the OEM cartridge plastic is needed.
The drum and gear are pre-assembled and the HM402PDGRKIT-2 is required (sold separately).
During remanufacturing, the OEM bearing plate on the cartridge is removed with a pry tool to break two ultrasonic welds. During re-assembly, install the clear OPC washer and simply attach the replacement bearing plate with a bolt and nut (provided in the HM402PDGRKIT-2). The cartridge end plate is re-attached using the OEM screws. No further modification of the OEM cartridge plastic is needed.
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Monochrome Laser Printer
Code
OEM Yield
Regions
2200C002 (CRG-052H) for Canon i-SENSYS LBP212/214/215, MF421/426/428/429
9200
EU
This Odyssey drum features patented SafeDrive gear technology, which features a lever mechanism in the HM402PDGRKIT-2 to engage the dongle on the PG2DRHM402-2 drum gear. The lever is actuated by the printer door and provides smooth removal and installation.
The drum and gear are pre-assembled and the HM402PDGRKIT-2 is required (sold separately).
During remanufacturing, the OEM bearing plate on the cartridge is removed with a pry tool to break two ultrasonic welds. During re-assembly, install the clear OPC washer and simply attach the replacement bearing plate with a bolt and nut (provided in the HM402PDGRKIT-2). The cartridge end plate is re-attached using the OEM screws. No further modification of the OEM cartridge plastic is needed.
The drum and gear are pre-assembled and the HM402PDGRKIT-2 is required (sold separately).
During remanufacturing, the OEM bearing plate on the cartridge is removed with a pry tool to break two ultrasonic welds. During re-assembly, install the clear OPC washer and simply attach the replacement bearing plate with a bolt and nut (provided in the HM402PDGRKIT-2). The cartridge end plate is re-attached using the OEM screws. No further modification of the OEM cartridge plastic is needed.
Weight
0.210 LB
Volume
49.230 LB
Length
12.200 IN
Width
8.800 IN
Height
1.800 IN
| Type | Doc Number | Media Type | Media File |
|---|---|---|---|
| 5320 | PI | Installation Instructions for Replacement HP M402 Drum Gears |
**Requires use of HM402PDGRKIT-2**. Transition customers from PG2DRHM402-5 & DRHM402NG-5 (US andUK). Review customer pricing based on latest Tier pricing.
Available as Samples ONLY - Stock due EOM October.
Available as Samples ONLY - Stock due EOM October.
